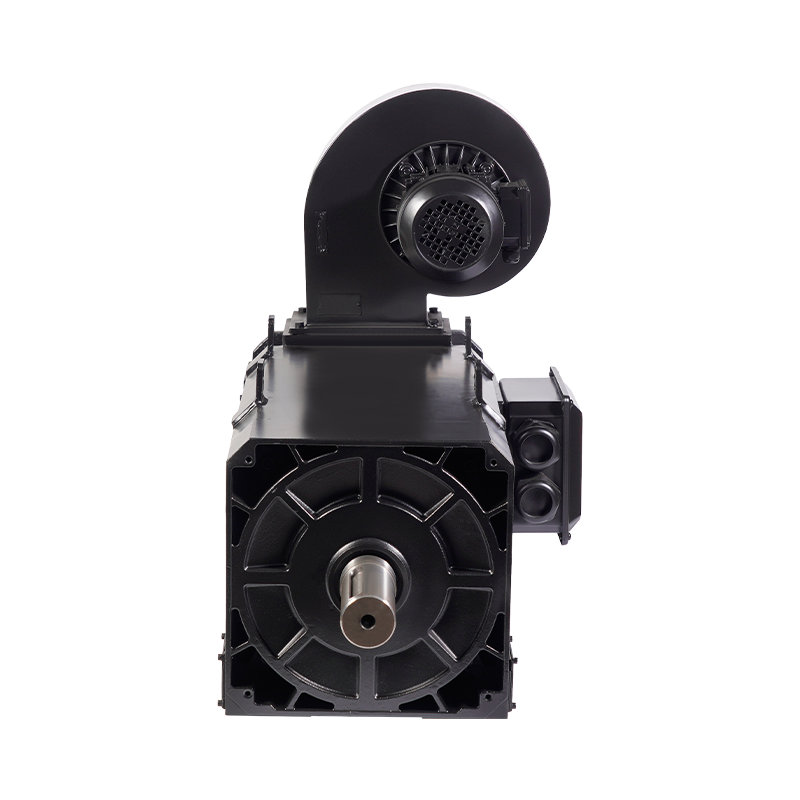

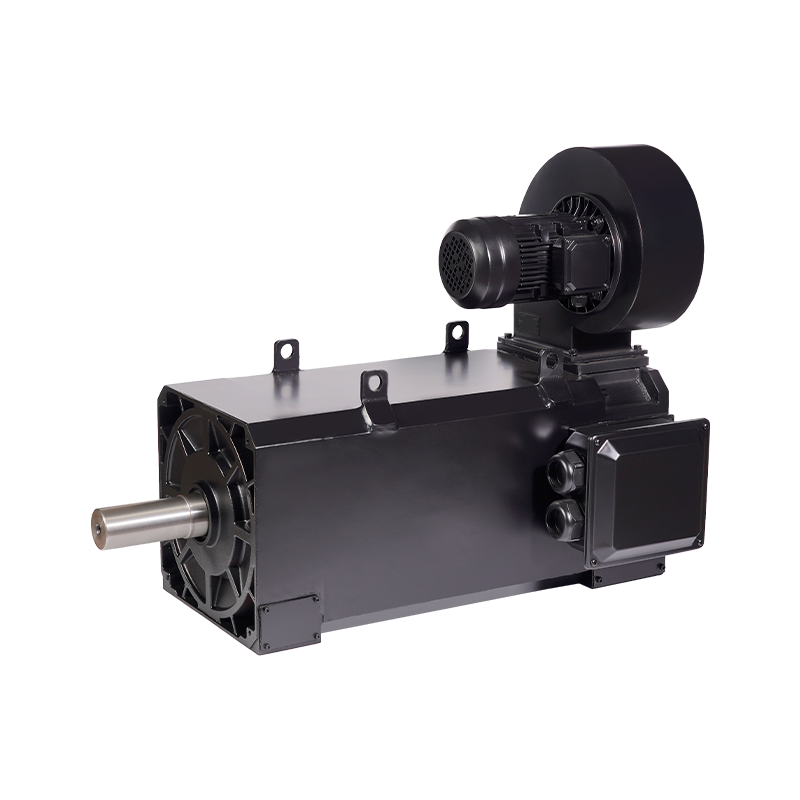

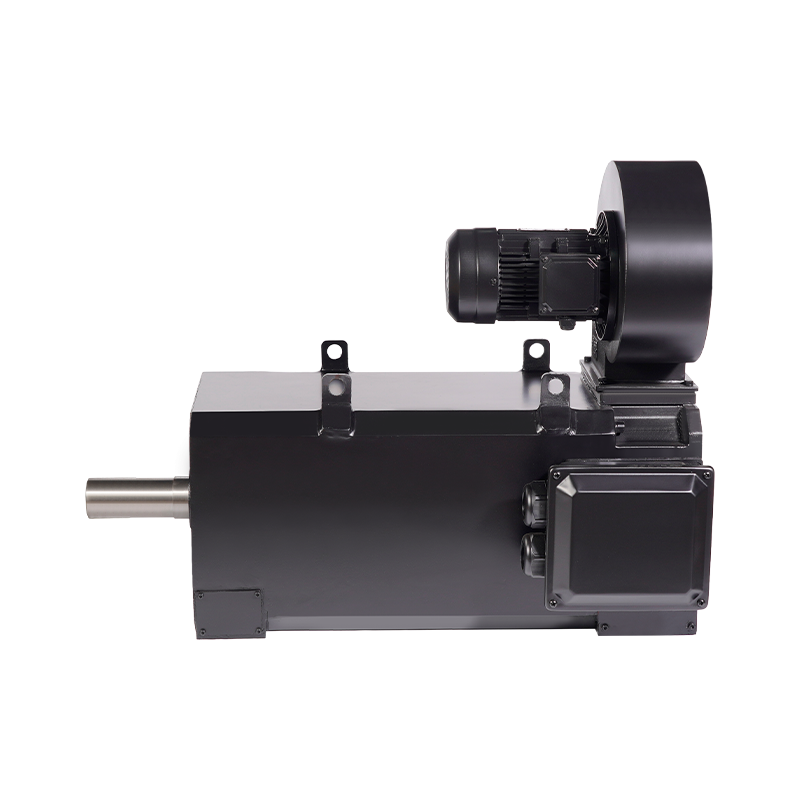

性能特點
1.轉速恒定，為同步轉速；
2.高效率，高功率因數，具有節能效果；
3.電機具有高的功率密度，每個中心高有4-5檔功率等級；
4.電機為方型外觀、采用全疊片無機座結構；在四角處的獨特通風散熱系統；
5.與標準電機相比，相同功率降低2-3個中心高,少占用空間；
6.可根據需要，可設定不同的基頻，不需選用其它極數電機，就可達到以不同轉速為額定轉速的目的；
7.低慣量的電機轉子具有較寬的調速范圍和更快的響應時間，適合起動變速較頻繁的場合使用；
8.接線盒和冷卻風機的位置靈活安裝。
?
基本型式
|
項 目? |
內??? 容? |
|
標準 |
GB755-2008旋轉電機定額和性能（IEC60034）； GB10068-2008軸中心高56mm以上電機的振動 振動測量、評定及限值（IEC60034-14）； GB/T10069.3-2008旋轉電機噪聲測定方法及限值 第3部分：噪聲限（IEC60034-9）； |
|
電壓 |
380V、660V、（其它電壓可選） |
|
接法 |
Y |
|
冷卻方式 |
IC416/IC06(離心風機) |
|
額定轉速?????????? |
500 /750/1000/1500/1800/2000/3000r/min |
|
絕緣等級 |
F或H |
|
機座中心高 |
132、160、180、200、225、280、355 |
|
工作制 |
S1 |
|
防護等級 |
IP23/IP55 |
|
海拔 |
≤1000m |
|
環境溫度 |
-15-40℃ |
|
允許電壓 偏差 |
±5% |
|
連接方式 |
連軸器 |
|
相對濕度 |
90% |
|
定子繞組熱傳感器 |
PTC140℃（PT100? KTY PTO 可選） |
型號說明(舉例)?
TJF-180M-1500-132-06-L
TJF-電機型號
180-電機中心高（132/160/180/200/225/280/355)
M-電機鐵心長（K/S/M/L/P/X）
1500-額定轉速（500 /750/1000/1500//2000）
132-功率（kW）
06-冷卻方式(IC06/IC416)
L-風機類型(L高殼離心風機/HQ后傾離心風機）
規格參數
| TJF-132? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | ?kg.㎡ | ? kg | |
| TJF-132K | 500 | 8.5 | 14.5 | 162 | 88.9 | 0.96 | 0.14 | 120 |
| 1000 | 17 | 27.1 | 162 | 94.9 | 0.96 | |||
| 1500 | 26 | 41.5 | 165 | 95 | 0.96 | |||
| 2000 | 30 | 51 | 143 | 96 | 0.96 | |||
| TJF-132S | 500 | 10 | 16.2 | 191 | 90.9 | 0.96 | 0.162 | 140 |
| 1000 | 20 | 31.6 | 191 | 94.5 | 0.96 | |||
| 1500 | 30 | 47.8 | 191 | 95 | 0.96 | |||
| 2000 | 35 | 66 | 167 | 96.2 | 0.96 | |||
| TJF-132M | 500 | 11.5 | 18.8 | 219 | 90.9 | 0.96 | 0.185 | 160 |
| 1000 | 23 | 36 | 219 | 95.6 | 0.96 | |||
| 1500 | 34 | 55 | 216 | 95 | 0.96 | |||
| 2000 | 40 | 67 | 191 | 96.2 | 0.96 | |||
| TJF-132L | 500 | 12.8 | 21.2 | 244 | 90.9 | 0.96 | 0.22 | 190 |
| 1000 | 27 | 42.8 | 257 | 95.8 | 0.96 | |||
| 1500 | 39 | 71 | 248 | 95.3 | 0.96 | |||
| 2000 | 47 | 87.6 | 224 | 96.3 | 0.96 | |||
| TJF-132P | 500 | 15 | 25.2 | 286 | 91.6 | 0.96 | 0.261 | 230 |
| 1000 | 30 | 48 | 286 | 95.8 | 0.96 | |||
| 1500 | 45 | 75 | 286 | 95.6 | 0.96 | |||
| 2000 | 55 | 88 | 262 | 96.4 | 0.96 | |||
| TJF-160?? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | ?kg.㎡ | ? kg | |
| TJF-160S | 500 | 17 | 27 | 325 | 91.6 | 0.96 | 0.3 | 250 |
| 1000 | 30 | 50.5 | 286 | 95.8 | 0.96 | |||
| 1500 | 45 | 75.5 | 286 | 95.6 | 0.96 | |||
| 2000 | 45 | 76 | 215 | 96.3 | 0.96 | |||
| TJF-160M | 500 | 20.5 | 32.7 | 391 | 93.3 | 0.96 | 0.36 | 270 |
| 1000 | 37 | 63 | 353 | 96 | 0.96 | |||
| 1500 | 55 | 92.5 | 350 | 95.8 | 0.96 | |||
| 2000 | 55 | 91 | 262 | 96.4 | 0.96 | |||
| TJF-160L | 500 | 23.5 | 37.5 | 448 | 93.3 | 0.96 | 0.42 | 300 |
| 1000 | 43 | 76.5 | 410 | 96.2 | 0.96 | |||
| 1500 | 65 | 108 | 413 | 96 | 0.96 | |||
| 2000 | 65 | 105 | 310 | 96.5 | 0.96 | |||
| TJF-160P | 500 | 27 | 43 | 515 | 96.3 | 0.96 | 0.49 | 320 |
| 1000 | 49 | 87 | 468 | 96.2 | 0.96 | |||
| 1500 | 75 | 122 | 477 | 96 | 0.96 | |||
| 2000 | 75 | 120 | 358 | 96.5 | 0.96 | |||
| TJF-160X | 500 | 31 | 50 | 592 | 93.6 | 0.96 | 0.55 | 340 |
| 1000 | 55 | 93.5 | 525 | 96.3 | 0.96 | |||
| 1500 | 85 | 138 | 541 | 96 | 0.96 | |||
| 2000 | 85 | 140 | 405 | 96.5 | 0.96 | |||
| TJF-180??? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | kg.m2 | ?kg | |
| TJF-180K | 500 | 33 | 54 | 630 | 93.6 | 0.96 | 0.6 | 350 |
| 1000 | 64 | 105 | 611 | 96.4 | 0.96 | |||
| 1500 | 80 | 125 | 509 | 96.2 | 0.96 | |||
| 2000 | 100 | 62 | 477 | 96.6 | 0.96 | |||
| TJF-180S | 500 | 37.5 | 62 | 716 | 93.9 | 0.96 | 0.9 | 390 |
| 1000 | 78 | 126 | 745 | 96.4 | 0.96 | |||
| 1500 | 95 | 150 | 605 | 96.2 | 0.96 | |||
| 2000 | 117 | 189 | 558 | 96.6 | 0.96 | |||
| TJF-180M | 500 | 46 | 75 | 878 | 94.2 | 0.96 | 1.05 | 410 |
| 1000 | 92 | 150 | 878 | 96.5 | 0.96 | |||
| 1500 | 110 | 170 | 700 | 96.4 | 0.96 | |||
| 2000 | 138 | 222 | 658 | 96.5 | 0.96 | |||
| TJF-180L | 500 | 55 | 90 | 1050 | 94.5 | 0.96 | 1.26 | 465 |
| 1000 | 110 | 180 | 1050 | 96.6 | 0.96 | |||
| 1500 | 132 | 211 | 840 | 96.6 | 0.96 | |||
| 2000 | 165 | 314 | 787 | 96.6 | 0.96 | |||
| TJF-180P | 500 | 62 | 101 | 1184 | 94.5 | 0.96 | 1.42 | 510 |
| 1000 | 125 | 202 | 1193 | 96.6 | 0.96 | |||
| 1500 | 145 | 233 | 923 | 96.6 | 0.96 | |||
| 2000 | 187 | 291 | 892 | 96.6 | 0.96 | |||
| TJF-200??? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | kg.m2 | kg | |
| TJF-200K | 500 | 60 | 97 | 1146 | 94.5 | 0.96 | 1.9 | 560 |
| 1000 | 120 | 189 | 1146 | 96.6 | 0.96 | |||
| 1500 | 175 | 280 | 1115 | 96.5 | 0.96 | |||
| 2000 | 185 | 290 | 883 | 96.6 | 0.96 | |||
| TJF-200S | 500 | 70 | 112 | 1337 | 94.7 | 0.96 | 2.1 | 610 |
| 1000 | 138 | 218 | 1318 | 96.6 | 0.96 | |||
| 1500 | 200 | 321 | 1273 | 96.6 | 0.96 | |||
| 2000 | 220 | 350 | 1051 | 96.6 | 0.96 | |||
| TJF-200M | 500 | 80 | 130 | 1528 | 94.7 | 0.96 | 2.35 | 660 |
| 1000 | 156 | 246 | 1489 | 96.6 | 0.96 | |||
| 1500 | 230 | 368 | 1464 | 96.6 | 0.96 | |||
| 2000 | 250 | 410 | 1194 | 96.7 | 0.96 | |||
| TJF-200L | 500 | 86 | 140 | 1642 | 94.7 | 0.96 | 2.75 | 710 |
| 1000 | 173 | 275 | 1652 | 96.6 | 0.96 | |||
| 1500 | 260 | 423 | 1655 | 96.7 | 0.96 | |||
| 2000 | 280 | 450 | 1337 | 96.7 | 0.96 | |||
| TJF-200P | 500 | 93 | 155 | 1776 | 94.7 | 0.96 | 3 | 740 |
| 1000 | 185 | 300 | 1766 | 96.6 | 0.96 | |||
| 1500 | 280 | 440 | 1782 | 96.7 | 0.96 | |||
| 2000 | 300 | 480 | 1433 | 96.7 | 0.96 | |||
| TJF-225??? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | kg.m2 | kg | |
| TJF-225S | 500 | 70 | 120 | 1337 | 94.7 | 0.96 | 2.2 | 610 |
| 1000 | 132 | 216 | 1260 | 96.6 | 0.96 | |||
| 1500 | 200 | 330 | 1273 | 96.6 | 0.96 | |||
| TJF-225M | 500 | 83 | 140 | 1585 | 94.7 | 0.96 | 2.4 | 700 |
| 1000 | 160 | 260 | 1528 | 96.6 | 0.96 | |||
| 1500 | 240 | 400 | 1528 | 96.7 | 0.96 | |||
| TJF-225L | 500 | 97 | 160 | 1852 | 94.7 | 0.96 | 2.9 | 790 |
| 1000 | 190 | 310 | 1815 | 96.6 | 0.96 | |||
| 1500 | 280 | 490 | 1782 | 96.7 | 0.96 | |||
| TJF-225P | 500 | 110 | 185 | 2101 | 94.7 | 0.96 | 3.1 | 860 |
| 1000 | 220 | 360 | 2101 | 96.6 | 0.96 | |||
| 1500 | 315 | 520 | 2005 | 96.8 | 0.96 | |||
| TJF-225X | 500 | 125 | 205 | 2388 | 94.7 | 0.96 | 3.5 | 950 |
| 1000 | 250 | 430 | 2387 | 96.9 | 0.96 | |||
| 1500 | 355 | 600 | 2260 | 96.8 | 0.96 | |||
| TJF-225Y | 500 | 135 | 220 | 2578 | 94.7 | 0.96 | 3.8 | 1030 |
| 1000 | 280 | 480 | 2674 | 96.6 | 0.96 | |||
| 1500 | 380 | 660 | 2420 | 96.8 | 0.96 | |||
| TJF-280??? 380V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | kg.m2 | kg | |
| TJF-280K | 500 | 125 | 200 | 2388 | 95.9 | 0.96 | 6.8 | 1260 |
| 1000 | 250 | 400 | 2388 | 96.8 | 0.96 | |||
| 1500 | 355 | 560 | 2260 | 96.8 | 0.96 | |||
| TJF-280S | 500 | 145 | 230 | 2722 | 96 | 0.96 | 7.9 | 1360 |
| 1000 | 285 | 450 | 2722 | 96.8 | 0.96 | |||
| 1500 | 420 | 665 | 2674 | 97 | 0.96 | |||
| TJF-280M | 500 | 160 | 250 | 3008 | 96.3 | 0.96 | 8.7 | 1460 |
| 1000 | 320 | 500 | 3008 | 96.9 | 0.96 | |||
| 1500 | 465 | 730 | 2960 | 97.2 | 0.96 | |||
| TJF-280L | 500 | 180 | 290 | 3457 | 96.5 | 0.96 | 9.9 | 1560 |
| 1000 | 362 | 580 | 3457 | 97 | 0.96 | |||
| 1500 | 525 | 830 | 3343 | 97.4 | 0.96 | |||
| TJF-280P | 500 | 200 | 315 | 3820 | 96.9 | 0.96 | 11 | 1660 |
| 1000 | 400 | 625 | 3820 | 97 | 0.96 | |||
| 1500 | 580 | 910 | 3923 | 97.5 | 0.96 | |||
| TJF-280X | 500 | 225 | 350 | 4297 | 97.3 | 0.96 | 12.1 | 1780 |
| 1000 | 450 | 700 | 4297 | 97.3 | 0.96 | |||
| TJF-280Y | 500 | 250 | 400 | 4775 | 97.5 | 0.96 | 13.6 | 1950 |
| 1000 | 500 | 820 | 4775 | 97.3 | 0.96 | |||
| TJF-355?? 660V? IP54?? IC416? F? S1 | ||||||||
| 電機型號 | 額定轉速 | 標稱功率 | 標稱電流 | 額定轉矩 | 效率 | 功率因數 | 轉動慣量 | 重量 |
| r/min | kW | A | N.m | % | cosΦ | kg.m2 | kg | |
| TJF-355S | 500 | 300 | 280 | 5730 | 97 | 0.96 | 27 | 2870 |
| 1000 | 600 | 550 | 5730 | 97.5 | 0.96 | |||
| TJF-355M | 500 | 350 | 330 | 6685 | 97 | 0.96 | 31.5 | 3020 |
| 1000 | 700 | 650 | 6685 | 97.5 | 0.96 | |||
| TJF-355L | 500 | 400 | 380 | 7640 | 97 | 0.96 | 36 | 3170 |
| 1000 | 800 | 750 | 7640 | 97.5 | 0.96 | |||
| TJF-355P | 500 | 450 | 430 | 8595 | 97 | 0.96 | 40 | 3270 |
| 1000 | 900 | 850 | 8595 | 97.5 | 0.96 | |||
| TJF-355X | 500 | 500 | 480 | 9550 | 97.6 | 0.96 | 45 | 3370 |
| 1000 | 1000 | 950 | 9550 | 97.6 | 0.96 | |||
安裝尺寸
TJF132
| 型 號 | B | L | 重量kg |
| TJF-132K | 301 | 540 | 120 |
| TJF-132S | 331 | 570 | 140 |
| TJF-132M | 361 | 600 | 160 |
| TJF-132L | 401 | 640 | 190 |
| TJF-132P | 461 | 700 | 230 |

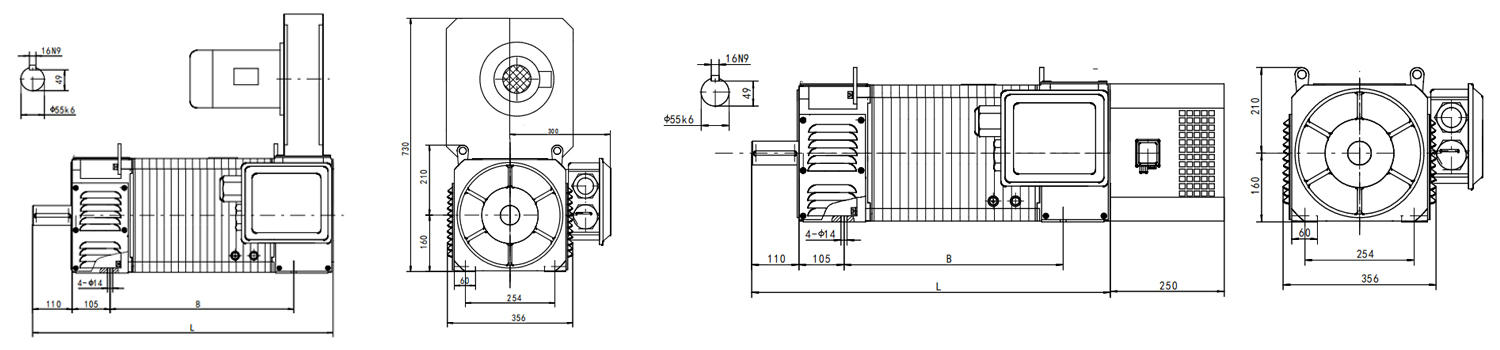

TJF160
| 型 號 | B | L | 重量kg |
| TJF-160S | 360 | 700 | 250 |
| TJF-160M | 410 | 750 | 270 |
| TJF-160L | 460 | 800 | 300 |
| TJF-160P | 510 | 850 | 320 |
| TJF-160X | 560 | 900 | 340 |

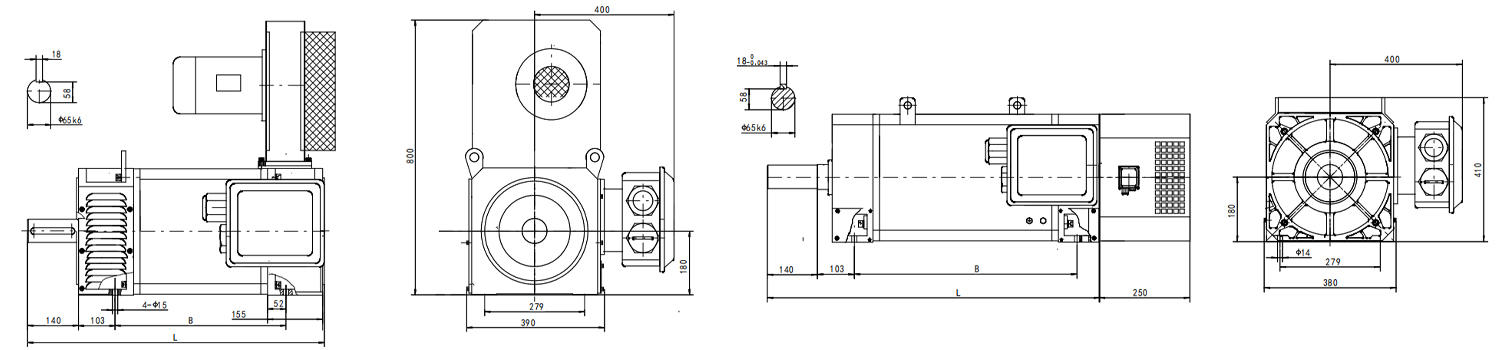

TJF180
| 型 號 | B | L | 重量kg |
| TJF-180K | 420 | 790 | 350 |
| TJF-180S | 480 | 850 | 390 |
| TJF-180M | 540 | 910 | 410 |
| TJF-180L | 620 | 970 | 460 |
| TJF-180P | 680 | 1030 | 510 |

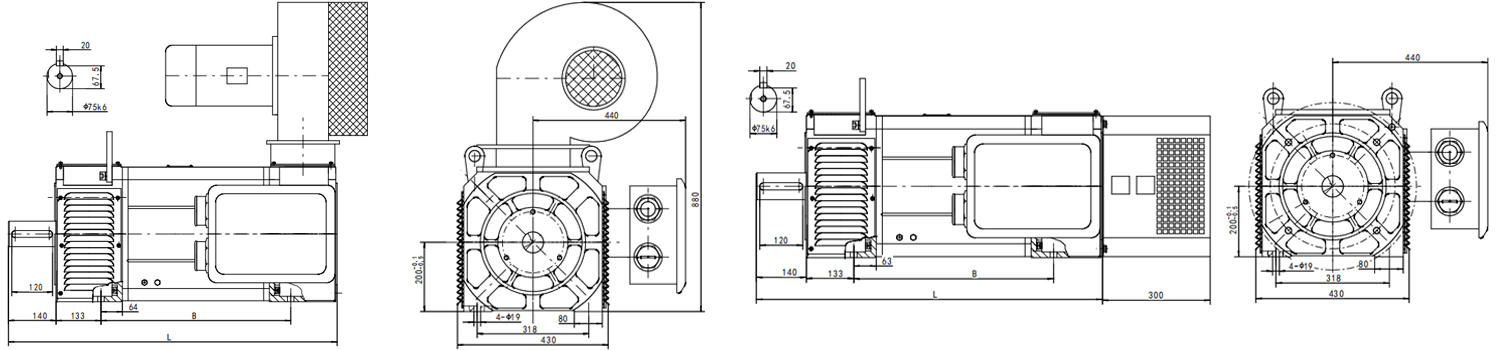

TJF200
| 型 號 | B | L | 重量kg |
| TJF-200K | 560 | 970 | 560 |
| TJF-200S | 620 | 1030 | 610 |
| TJF-200M | 680 | 1090 | 660 |
| TJF-200L | 740 | 1150 | 710 |
| TJF-200P | 780 | 1190 | 740 |

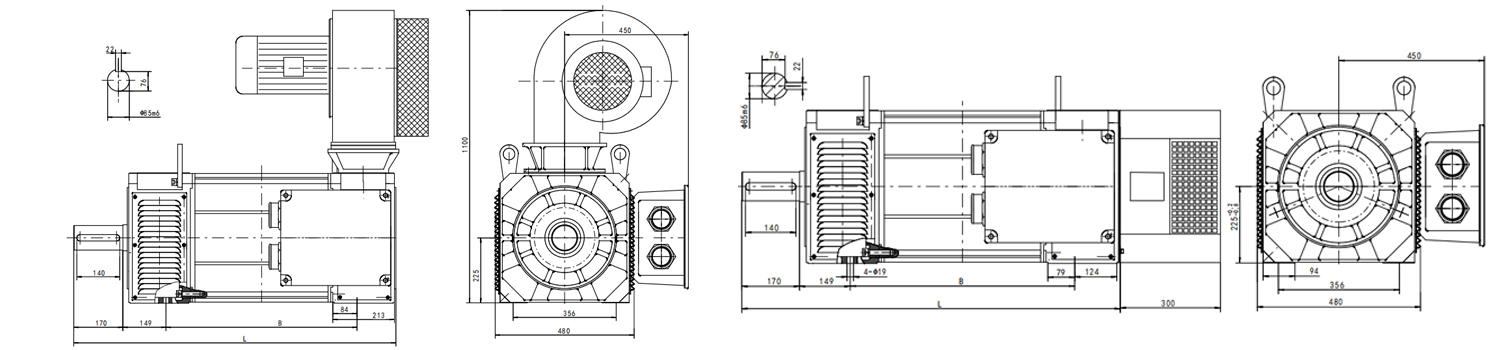

TJF225
| 型 號 | B | L | 重量kg |
| TJF-225S | 540 | 1000 | 610 |
| TJF-225M | 600 | 1060 | 700 |
| TJF-225L | 660 | 1120 | 790 |
| TJF-225P | 720 | 1180 | 860 |
| TJF-225X | 790 | 1250 | 950 |
| TJF-225Y | 840 | 1300 | 1030 |

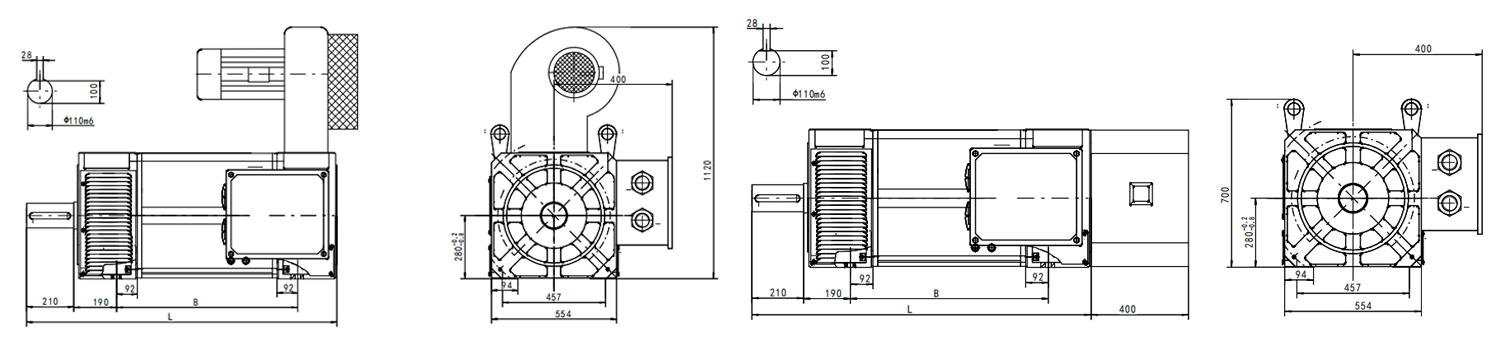

TJF280
| 型 號 | B | L | 重量kg |
| TJF-280K | 624 | 1220 | 1260 |
| TJF-280S | 684 | 1280 | 1360 |
| TJF-280M | 734 | 1330 | 1460 |
| TJF-280L | 804 | 1400 | 1560 |
| TJF-280P | 864 | 1460 | 1660 |
| TJF-280X | 934 | 1530 | 1780 |
| TJF-280Y | 1024 | 1620 | 1930 |

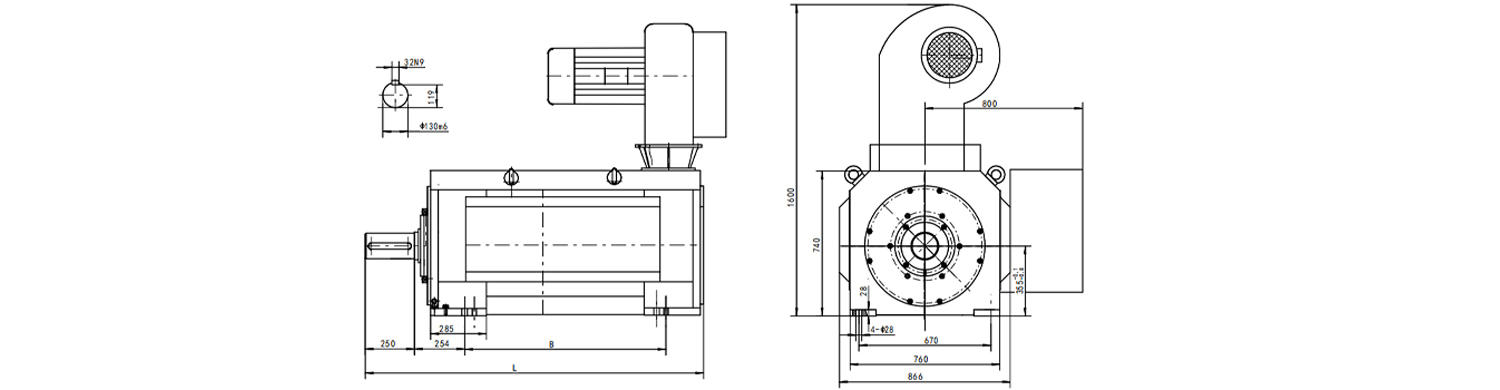

TJF355
| 型 號 | B | L | 重量kg |
| TJF-355S | 800 | 1520 | 2870 |
| TJF-355M | 900 | 1620 | 3020 |
| TJF-355L | 1000 | 1720 | 3170 |
| TJF-355P | 1100 | 1820 | 3320 |
| TJF-355X | 1200 | 1920 | 3470 |
